  1. Relays/Switches – SPST-N.O. or 1 Form A and SPST-N.C. 1 Form B
  2. Relays/Switches – SPDT or 1 Form C
  3. Relays/Switches – DPST-N.O./N.C. or 1 Form A and B, and DPST-N.O./N.O. or 2 Form A
  4. Ultra-Fast I-V Biases Generator
  5. H-Driver for DC Motor
  6. DC/DC converters
  7. Various other Modules and Devices
  8. Input Module for Security
  9. Automotive devices for cars, motorcycles, and Forklifts
  10. Devices for Electrical car
  11. Replacement devices
  12. Analog/Video Switch

Back to Contents

Relays/Switches – SPST-N.O. or 1 Form A and SPST-N.C. 1 Form B

D1A Series
Low cost, miniature size and high sensitivity. This relay utilizes only .65 sq. in. of PCB area and only .6” tall. 3 Amp continues or up to 5 Amp-pick in miniature size High sensitivity, even at a high switching frequency 12 A surge current and only 70 mill-Ohms low on-state resistance.
D1L Series
SPST-N.O. – normally open, low speed and low cost. This relay utilizes only .65 sq. in. of PCB area and only .6” tall. 12 Amp continues or up to 100 Amp-pick in miniature size High sensitivity, even at a high switching frequency 300 A surge current and only 20 mill-Ohms low on-state resistance.
R1L Series, Normally Closed
SPST-N.C.—normally closed, low speed and low cost. This relay utilizes only .65 sq. in. of PCB area and only .6” tall. Sealed Construction for Automatic Soldering and Cleaning. High sensitivity, only 10 mA required Very high surge current tolerance Very low on-state resistance.
R2L Series, Normally Closed
EDR82396, +/-650VDC (350VAC) at 1.1 ampere, 5mA rms control current, 1-Form B, SPST-N.C. (normally closed) Solid-State Relay. Utilizes only .65 sq. in. of PCB area and only 1.15” tall. High sensitivity, only 1 mA required. Available for 3.3V, 5V, 12V, 24, and 3.2-36V input control voltages.
μR2M Series, Normally Closed

EDR83040, μR2M and μD2M series. These relays are ideal for interfacing portable and remote equipment. Incorporating an innovative isolated driver ensures ultra-low input power consumption of only 300μA at 2.4V. Output to 3.5kW of AC or DC voltages with a control of only 0.6mW.
D3F, Fast, 200V, 3.5A
D3F200D3.5/5/10, EDR82611, Powerful Fast Solid State Relay. Designed to deliver 5 KW of power in a microsecond. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall 3.5A continuously or up to a 25A pulse in a miniature package. High sensitivity, even at high switching frequencies.
D3F, Fast, 500V, 6A
D3F500D6/5/5, EDR82622, Powerful Fast Solid State Relay. Designed to deliver 80 KW of power in a microsecond. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 6A continuous or up to a 160A pulse in a miniature package. High sensitivity, even at high switching frequencies.
D3G Series
Fast, medium power SIP5 SOST Relays/Switches. Designed to deliver 4KW of power in microseconds. This relay utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 5A continuously or up to a 40A-pulse in a miniature package High sensitivity, even at high switching frequencies.
D3N Series
Series D3N Solid State Relay/Switches. 15, 20 & 30Amp/40VDC and 11 & 15 Amp/30VAC Output. These solid state DC/AC output relays feature MOSFET technology for low on-state resistance, assuring easy paralleling and switching capabilities.
D3N Series - 40V various current
Direct Driver, SIP4 SPST-NO SSR
D3N Series - 75V various current
Direct Drive, SIP4 SPST-NO SSR
D3N75D26 - 75VDC 26A
Direct Drive, SIP4 SPST-NO SSR
D5G500A20
High-Power 500VDC/20A, 350VAC/13Arms Relay/Switch for AC/DC applications. Designed to deliver 100KW of power in microseconds. This relay 20A continuously or up to a 200A-pulse in a miniature package. High sensitivity, even at high switching frequencies. PC Board mounting.
D7G Series, SPST-N.O.(fast switch)
EDR84101, Powerful 100VDC/45A SPST-NO Relays/Switches of the “D7G” family. Designed to deliver 20kW of power in microseconds. This relay utilizes only 8 sq. in. of PCB area and only 2.0” tall. 45A continuously or up to a 200A-pulse in a miniature package. High sensitivity, even at high switching frequencies.
D7G Series, SPST-N.O.(High-Power)
EDR84102, High-Power, High-Speed, 100VDC at 100 amperes SPST-N.O. (normally opened) Switches. Designed for delivering 80kW of power in microseconds. This relay utilizes only 8 sq. in. of PCB area and only 2.0” tall. 100A continuously or up to a 450A-pulse in a miniature package.
D9F Series - Super-high Power (Ultra-Fast)
Super-High Power, Ultra-Fast SPST-NO Switches for AC and DC power applications. Designed to deliver 48 kW of power in microseconds. All required control circuitries for PWM control are built-in. 34A continuously without a heat sink and up to 200A with a heat sink.
D9G Series - Super-high Power (Fast)
Isolated, SPST relay/switch designed to switch a DC or AC power in microseconds. Requires only 12VDC/20mA (240mW) to control kilowatts of power. The EDR’s Solid State Relays (SSR) use proprietary and unique design to deliver fast, reliable, bounce-free switching in various packages.
DPG Series
High-Power, High-Speed, panel mounted SPST-NO switches for DC and DC/AC applications. Designed to deliver 20kW of power in microseconds. This relay utilizes only 4 sq. in. of area and only .9” tall. 32A continuously or up to 200A-pulse in a miniature package.
µDPL Series

High-Power panel mounted SPST-NO switches for DC applications. MOSFET output. Ratings available up to 1,700 VDC & 240 Amp. Requires no heat sink at the rated current. Relays are easily paralleled for higher current applications. Easily connected in series for controlling VAC power. Low control power of only 1.4mW at 2.8 VDC. Medium switching frequency, up to 3KHz(50 A). Utilizes only 4 sq. in. of area and only 0.9” tall.
DRF Series - (Ultra Fast)
Ultra Fast, Super-High Speed, High-Power SPST-NO Switches. Designed to deliver 79kW (400V/200A) pulse in one microsecond. Utilizes only 19.8 sq. in. of PCB area and only 1.8” tall. Delivers 20A continuously. With a reduced duty cycle can deliver up to a 90A pulse at 10 uS. Works with any DC voltages from 0V to 600VDC.
xTxL Series
DT1L60D5/10-5, EDR83050/2. The “xTxL” family of SSRs with high precision, wide hysteresis window comparator and varied contact forms rated at various voltages/currents. The xTxL relays can work directly off a control signal, if it can provide 10mA current. If a control signal is a low power 10uA or so, an external power source of any voltage from 5.0V to 36.0V and 10mA is required. Threshold and hysteresis are set during production.
S3L250A10/120, Current Sensor
S3L250A10/120, EDR82608, SPST-NO with current feedback.
SPST-NO (600VAC&1A)
D8L501, EDR82501. SPST-N.O.(Normally Open) SSR to replace Allen Bradley’s electromechanical relays 700-TBR12, 700-TBR24, 700-TBR48 dry contacts miniature relay with p/n EDR82501/3, EDR82501/4, and EDR82501/5 respectfully. Utilizes only .2 sq. in. of PCB area and only 0.575” tall.
SPST-NO (Hi temperature)
AL200D10, EDR82639. A family of “AL” Solid-State Relays rated at 100 degrees Celsius. Utilizes only .28 sq. in. of PCB area and only .625” tall. 10 Amp continuous or up to 100 Amp-max in miniature size. 200 A surge current and only 20 mill-Ohms low on-state resistance. Available in DIP24 and a miniature SIP4 packages.
TRIAC SSR for AC applications
D2N504, EDR82531. Series D2N with Low control Voltage. 2-6.5 Amps, 480 VAC, AC Output SIP. Direct interfacing to Low Voltage, Low Power modern Logic Chips Zero Voltage Switching. Pin-outs are compatible with D2W, CX, CMX and OAC type of I/O modules.
650V, 3A relay/switch
D3N650D3, EDR82802. Direct Drive, SIP4 SPST-NO SSR. Designed to deliver 13KW of power in a few microseconds. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 3.2A continuous or up to a 20A-spike in a miniature package. 40A surge current and only 0.2 Ohms on-state resistance.
2500V, 3A relay
D3N2500D3, EDR82913. Direct Drive, SIP4 SPST-NO SSR. 2,500VDC, 3A, 150 KHz relay switch. Designed to deliver 68 KW of power in a microsecond. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 3A continuous or up to a 30A pulse in a miniature package. 50A surge current and only 3.2 Vce saturated.

Back to Contents

Relays/Switches – SPDT or 1 Form C

SPDT SSR Summary
Summary on SPDT Solid State Relays, Switches, 1/2 Drivers and other devices
Mechanical dimensions <
Mechanical dimensions of “T2L, D2L, D2G” families of relays
T1G Series
Miniature fast SPDT, 60VDC, 6A, 160 KHz ½ driver/switch. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 6A continuous or up to a 100A pulse at 10 uS pulse. High sensitivity, even at high switching frequencies
T3G Series
EDR83933 -- 500VDC, 3A, 160 KHz ½ driver/switch. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 3A continuously or up to a 30A pulse at 10 ìS pulse. High sensitivity, even at high switching frequencies. Fuzzy-logic input allows individual control of each pair of outputs.
T3F Series
The “T” family of High speed, Isolated, SPDT/DPST, break-before-make switches. Designed to switch a DC-5MHz signal in nanoseconds. Fussy-logic controlled relays offered with a various output voltage and current to satisfy many industrial applications, up to 1200V relays made with MOSFET and up to 2500V with IGBT.
SPDT/DPST
Powerful, N.C./N.O. Solid State Relay. Designed to control 20 A, 75VDC in microseconds. Utilizes only 1.84 sq. in. of PCB area and only 1.2” tall. 20 Amp continuous or up to 160 Amp-pick in miniature size. 300 A surge current, and only 10 mill-Ohms low on-state resistance 24V input, and only 20 mA.
SPDT/DPST (relay) with disable
A new generation relays offer design flexibility and enable to create a SPDT or DPST relay with a disable control. designed to provide the maximum flexibility in wide varieties of applications. A precise internal timing control between N.C. (normally closed) and N.O. (normally opened) is a true break-before-make termination.
SPDT (fast switch/driver)
EDR82710 - 500VDC, 7A High speed, 1/2 Bridge Driver. A Fast, powerful break-before-make switch. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 7A continuous or up to 30 A pulse in a miniature package. 140 A surge current and only 0.01 Ohms on-state resistance.
Solid State SPDT Relays
Subminiature, Single Pole Double Throw Solid State Relays. Utilizes only 0.75 sq. in. of PCB area and only 1.05” tall. 1.4A continuous current and no heat sink is required. 18 A pulse in a miniature package. CMOS input. 7A maximum continuous current.
SPDT (Super Fast Switch)
Super-Fast ½-drivers. NanoSeconds rise/fall time, High-Voltage push-pull switches. The rise and fall times at the switch output are virtually the same and that allow generating an extremely precise, high-voltage, true square-wave pulses.
500VDC, 2A, 1/2 bridge driver
EDR83914 - 500VDC, 2A High speed SPDT Relay/1/2 Bridge Drivers. Isolated, a break-before-make switches. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 1.8A continuously or up to 24 A pulse in a miniature package. 90 A surge current and only 0.22 Ohms on-state resistance.
High Voltage Push-Pull Driver
High Voltage (4000 Volt), NanoSeconds Rise/Fall time, Push-Pull Driver. This switch consists of two alternately controlled solid-state switches. The rise and fall times at the switch output are virtually the same and that allow generating an extremely precise, high-voltage, true square-wave pulses.
Fuzzy-logic 1/2 Bridge drivers
Fuzzy-logic, Isolated, SPDT, ultra fast, High-Voltage 1/2 Bridge drivers/switches. Highly reliable. Designed to switch kilowatts of power in nanoseconds. Relays up to 1,700V made with MOSFET's and relays up to 2500V made with IGBT.
High-Voltage relays
Fast, High Voltage D3 and D4 series Solid State Relay/Switch. Designed to control up to 1700V and up to 1.2A without a heat sink. Utilizes only 1.84 sq. in. of PCB area and only 1.2” tall. High sensitivity, even at a high switching frequency.
TRG Series
Fast, High-Power SPDT Relays/Switches for AC and DC power applications. Designed to deliver a high-power pulse in nanoseconds. Fuzzy-logic controlled SPDT switches/relays offered with a various output voltage and current to satisfy many industrial applications. up to 2,500V relays made with MOSFET’s and to 4,000V with IGBT.

Back to Contents

Relays/Switches – DPST-N.O./N.C. or 1 Form A and B, and DPST-N.O./N.O. or 2 Form A

New SPDT/DPST fast relays - true N.C.
True Double Pole, Single Throw (DPST or 2 Form A+B) Connectable as a SPDT and SPST N.C. Solid-State Relays. Designed to control 20 A, 75VDC in microseconds. Utilizes only 1.84 sq. in. of PCB area and only 1.2” tall. High sensitivity, even at a high switching frequency.
D4N Series
Powerful Subminiature Solid State Relay/Switch. Designed to control 8 A, 200 VDC in microseconds. This relay utilizes only 1.84 sq. in. of PCB area and only 1.2” tall. 8 Amp continuous or up to 16 Amp-pick in miniature size High sensitivity, even at a high switching frequency.
EDR82441 75VDC(50VAC)&4A
SPDT Analog Switch. Designed to control 4 A, +/-75VDC (52VAC). Utilizes only 1.84 sq. in. of PCB area and only 1.2” tall. 4 Amp continuous or up to 29 Amp-pick in miniature size. 100 A surge current and only .06 Ohms low on-state resistance. Wide input range 4-15V input, and only 14 mA.
iSSR - DPST relay
DPST-NO/NO, self-protective, time-delay (slow-blow) relays. Our current/thermal relay/circuit breaker is designed to protect circuitry in microseconds with high inrush currents and holds 200VDC, 125VAC @ 2,000,000Hz. Electronically Resettable by cycling the control signal.
SPDT/DPST (relay) with disable
A new generation of relays offer design flexibility and enable to create a SPDT or DPST relay with a disable control. designed to provide the maximum flexibility in wide varieties of applications. A precise internal timing control between N.C. (normally closed) and N.O. (normally opened) is a true break-before-make termination.
EDR83429/7, 5-15V input, 650VDC(460VAC), 0.5 Amp
VSHolding LLC is proud to announce that the EDR83429 relay is currently being used, by KTH Racing, in the pre-charge and discharge circuits of their KTHR9e Electric Powered Race Car.

Back to Contents

Ultra-Fast I-V Biases Generator

Ultra-Fast I-V Biases Generator

EDR, Inc/VSHolding announces third generation Ultra-Fast I-V Biases Generators (UFBG) designed for real -time MRI, Magnetic Resonance Spectroscopy (MRS) and Ultrashort TE (UTE) Imaging.

Back to Contents

H-Driver for DC Motor

Full Bridge (H) DC Motor Driver
EDR82951, Full-Bridge Driver (H-Switch), Isolated. The EDR82951 is a second generation of an isolated DC Motor driver designed for motion control applications. Fast switching speed provides the designer with an extremely efficient and reliable device for use in a wide industrial, space, avionics and defense applications.
Full Bridge (H) Driver with Wide Supply Voltage Range
EDR82985, Full-Bridge (H-switch), Isolated, Bidirectional Drivers for Brushed DC Motors, Bipolar Permanent Magnet Stepping Motors, Solenoids, Thermoelectric Cooler Elements, etc. Designed for a single or dual power supplies. Available for wide supply range of 0 VDC to 1,200 VDC. Up to 16 Amperes Output-Current Capability (1.2 kW).
High-Speed, High-Power, Full-Bridge Driver
EDR83199/3/B, H7G200D4/12/B, High-Speed, High-Power Full-Bridge Driver. Isolated, Bidirectional with a break control. Rated from 24-VDC to 1,200-VDC. A new family of EDR’s third generation all-voltage, optical fullbridge (or H) drivers is a cost effective solution for automotive and other power control applications.
900V High-Speed H-driver

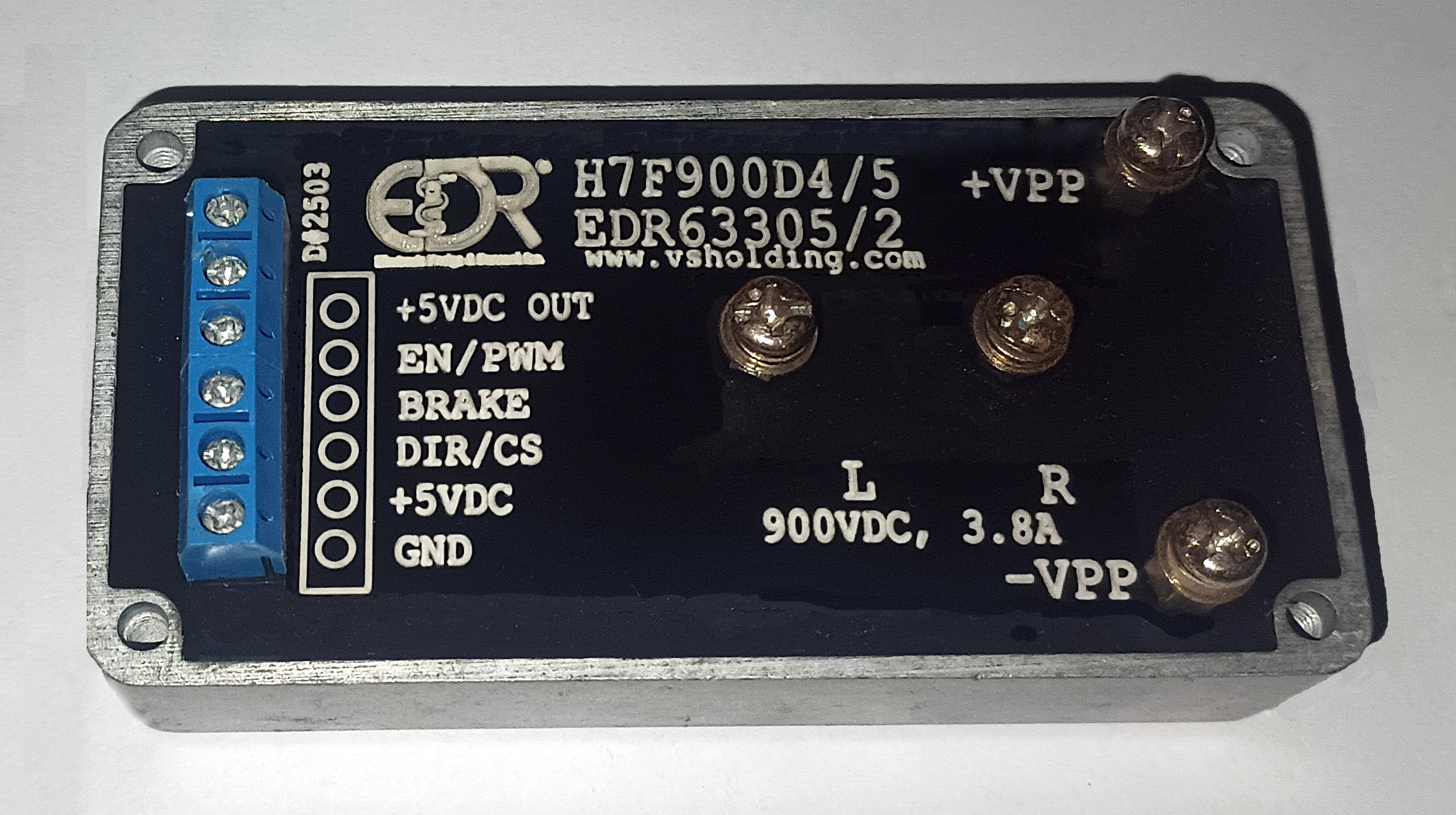

EDR/VSHOLDING introduces 900 VDC / 9.5 kW 10 ns rise time Full-Bridge ISO-drivers for applications where delivering kilowatts of high-frequency power is a must, such as a voltage booster to piezoelectric transducers and DC/DC converters, bidirectional PWM control, etc.
High-Power, H-Driver for thermo coolers
EDR83207/3/T, H7G60D24/12/T, High-Power, H-Driver for thermo coolers. A third generation of Double Isolated, 30kW/pulse Full-Bridge Driver for Brushed DC Motors, Spring-less Solenoids, Thermoelectric Cooler (Peltier) Elements, intelligent toys, robots, micro-cooling solution for Lasers, solid-state heat pumps, power tools and more.

Back to Contents

DC/DC converters

iUPS-DC/DC converter
iUPS-DC/DC converter provides a complete solution for bio-medical and industrial needs for protecting vital data gathering in cases of power failure and surge protection. The iUPS is designed to deliver up to 1.5W, 3W or 6W at all industrial standard output voltages to any peripheral device.
5VDC/1.5A, wide input
5VDC/1.5A, wide input. This converter belongs to the line of a single/dual outputs, voltage regulated DC power supplier features various DC output modules with output current from 250mA to 6 amperes. All outputs have current limiting short circuit protection.
10VDC, 1.2A, wide input
10VDC, 1.2A, wide input. converter belongs to the line of a single/dual outputs, voltage regulated DC power supplier features various DC output modules with output current from 250mA to 6 amperes. All outputs have current limiting short circuit protection.
EDR-1515/200W28 to replace 945 AD
EDR-1515/200W28 DC/DC converter to replace 945 by AD. Our line of more than 3000 type of compact DC/DC converters offers system designers a means of supplying a reliable, easy to use. Low cost solution to a variety of floating and digital power applications.
UPM-5/1000
EDR-5/1000 AC/DC converter to replace UPM-5/1000. This converter belongs to the line of a single output, voltage regulated DC power supplier features various DC output modules with output current from 250mA to 6 amperes. All outputs have current limiting short circuit protection.
UPM-5/1000-D24
EDR-5/1000D24 DC/DC converter to replace UPM-5/1000-D24. The converter belongs to the line of a single output, voltage regulated DC power supplier features various DC output modules with output current from 250mA to 6 amperes. All outputs have current limiting short circuit protection.
UPM-5/1000-D28
EDR-5/1000D28 DC/DC converter to replace UPM-5/1000-D28. The converter belongs to the line of a single output, voltage regulated DC power supplier features various DC output modules with output current from 250mA to 6 amperes. All outputs have current limiting short circuit protection.
UPM-5/3000
UPM-5/3000 DATEL EDR-5/3000S, input 90-264VAC EDR82052 - DC/DC converter.
High-voltage DC/DC converter
Series of High Voltage output DC/DC converters, regulated power supplies featuring 10 watts of up to 5,000 VDC output. This line of converters futures an programmable output vie an input terminal "adjustment," a 0 to 5 volt programming voltage.
UWR-12/830-D12A-C
DC/DC converter.
PB42WG-1212E2:1
DC/DC converter.
22kW (48Vin/220Vout)
Charge-And-Add (CAA DC/DC) type up/down power converter.
85-264VAC in, 5VDC/1A out
EDR-WAS051 EDR82135 - DC/DC converter.

Back to Contents

Various other Modules and Devices

EDR89002, SHPSA-103A650/08F
Super High-Power Switching Apparatus (SHPSA) with Virtual Battery. The SHPSA employs several SPST switches configured as a single SPDT or SPCO/SPTT/SPDT&N switch. The main difference between them is the SPCO switch has three states when a common SPDT switch has only two states. An SHPSA includes a capacitor bank (V-battery) that consists of 50 high discharging current metal film capacitors is the source for formatting (generating) output pulses. Each capacitor rated at 50 Amp / 450V or 2,500 Amps in total for the V-battery.
DIN Rail Mountable Relays/Drivers
EDR/VSHOLDING announces DIN Rail mounted SPST, SPDT, DPST, SPDT&N Solid-State Relays/Switches and half & full-bridge drivers. A wide range of devices are available off the shelf and are rated at a variety of output voltages, output currents, input control voltages and power requirements.
DIN RAIL
EDR's DIN RAILS fit industrial standard modules, such as IOC, OAC, ODC, D2W, CX & CMS. The EDR82558 is built with de-bouncing circuitry and a driver for easy interfacing with a PLC and other interfacing cards. It is especially useful with a high-speed Solid State Relay when the control comes from an electromechanical relays or other switch.
Making a ½ or Full-Bridge Driver out of two or four SPST switches
The EDR82909/B drives two and EDR82909/F drives four of EDR’s D3G and D3F types of relays in a ½ and H-bridge (full bridge) configurations. It can be use as a powerful analog, high frequency switch to provide a break-before-make commutation.
TVS Protectors and snubbing networks
Transient Voltage Surge Protectors protect sensitive electronic equipment and devices from high-voltage transient spikes. Available voltages from 7V to 2900 Volts. Unidirectional and Bi-directional. Devices are available with a built-in snubbing network.
EDR84080, iSUPS Sustainable Uninterrupted Switch
The iSUPS Sustainable Uninterrupted Switch starts functioning instantly, once any power source is connected to any of its input terminals and the common (GND). The iSUPS possesses “intelligent” signal processing, real-time making decisions of switching a high-power from a failed to a reliable power source “instantly” (less than microseconds).
EDR82534, 50/60 Hz Notch filters
The EDR 82534 is a low cost, multi-notch (comb) reject filter for low frequency signal applications. A Power interference or band stop filter is an important and needed sub-component to design and build medical recording systems where minute bioelectric signals, on the order of millivolts to microvolts are measured.
EDR82534H, 50/60 Hz High Precision Comb Filter
50/60Hz n-filter High precision, Comb Filter.
EDR82561, Power Line Adaptive Filter (PLAF)
EDR’s PLAF (power line adaptive filter) was designed around the EDR 82534 multi-notch (comb) reject filter. The PLAF is a stand-alone unit created for use in the detection of natural electromagnetic waves at remote locations and seismic data collection, biomedical and other scientific and industrial applications.
EDR91001, 200V/400Arms, 4000A pulse
Super High-Power Switching Apparatus (SHPSA) with Virtual Battery. The SHPSA-200A400/100V05F has a Power Rating of 80kW (average), 600kW pulse. Switches installed for handling 200VDC (140VAC) & 400Arms . Built-in adjustable pulse generator, once triggered, would deliver 10mS (+/-5mS) pulse.
Electronic Load
Electronic Load, UPEL-2500 220VAC/VDC, 2kW EDR82573.
Super-High Resolution Electrocardiograph
The Bundle of His Enhancer or Super-High Resolution Electrocardiograph (SHR-EKG, or HR-ECG, or HRECG)
Analog Building Block
EDR82541, Analog Building Block.
Analog Notch Filter
Analog Notch Filter, replace “xx” on the notch frequency EDR82554/xx.
Very-Slope Piezo Driver
VSPD-200 Very-Slope Piezo Driver, EDR82908.
High-Voltage Signal Separator Network
SSSN-4 High-Voltage Signal Separator Network, EDR84200.
Signal amplifier/conditioner
SCF-8 Signal amplifier/conditioner, 2-years EDR92001.
Programmable Neurological Stimulator
PASN-12 12-channel programmable neurological stimulator EDR93003.
Super-Precision Phase Detector/converter
LPFD-.7m Super-Precision Phase Detector (F -to-V) converter EDR82534.
Portable Intelligent Cardio-Stimulator
PCSD-200A Portable Intelligent Cardio-Stimulator EDR200102.
Solenoid Dual Controller for PIPE ORGAN
Solenoid Dual Controller for PIPE ORGAN EDR8064.
Solenoid Driver for Pipe ORGON
Solenoid Driver for Pipe ORGON works with p/n EDR8064 EDR8088.
AM/FM/CW Transmitter
AM/FM/CW Transmitter tutorial course with a set EDR81207/t.
AM/FM/CW Receiver
AM/FM/CW Receiver tutorial course with a set EDR81207/r.

Back to Contents

Input Module for Security

EDR82300, BIM-xxx/y/v
Basic Input Module (BIM) for security. Low Power, Solid State, Winston Bridge Module with a N.O & N.C. output. Utilizes only .65 sq. in. of PCB area and only .6” tall. Designed to be an integrative part of any security/warning system.

Back to Contents

Automotive devices for cars, motorcycles, and Forklifts

EDR82966, Fog Light Relay
The EDR82966 is used in TRANS AM DEPOT made cars. The Fog Light Relay is a modified 30VDC/9A relay and belongs to the family of DPST/SPDT miniature Solid-State Relays. Utilizes only 0.75 sq. in. of PCB area and only 1.25” tall. 9A continuous current and no heat sink is required. 40 A pulse in a miniature package.
EDR82633 – Brake “Hog Pusher” Control Module
Micro-Power modules for controlling a latching type valve. Relaible and Precision Solid-State Control for a 2-coil brakes. Small Footprint, 2.0”L x 2.7”W x .83”H. Internal Short-Circuit Protection for 6VDC@2A. Over-Temperature Protection. Wide-Input Range. Up to 50A surge at L1 output and up to 12A continuous.
EDR82658, iPCM-80/7
Power distribution module for motorcycles.
EDR82667
DSD-50 Dual Soft Landing Solenoid Driver.
EDR83500
SLSD-50 Dual Solenoid Driver.
EDR82304
Latching Relay 25VDC/40A.

Back to Contents

Devices for Electrical car (patent pending)

Electric Powered Vehicle Project
Virtual Battery
Step-Up Converter
Step-Up Converter for Electrical car, belongs to the “Charge-And-Add” family, a transformer-less converter.
DC to 3-phase-AC-converter
DC to 3-phase-AC-converter for driving 3-Phase motor via a pseudo-resonance regime.

Back to Contents

Replacement devices

EDR81212
Overlay for HAYSSEN Micrologic Keyboard.
EDR81200
Keyboard for Cherell-Barrel FDM800, 48-keys, p/n 910414.
EDR81200/S (Spanish)
KeyBoard for Cherell-Barrel FDM800, 48-keys, p/n 917438.
EDR81201
KeyBoard for Cherell-Barrel FDM800, 38-keys.
EDR82576
GE Phase Control SCR, p/n PBW68A993124.
EDR82023
GE p/n 691C074.
EDR82024
RAYCON Corp, p/n CP300074.
EDR81344
WASCOMAT delay assembly, p/n 4719514-12.
EDR82501/3
Allen Bradley relay, p/n 700-TBR24.
EDR81346
Allen Bradley Firing Brd, p/n 40296-082-5.
EDR81347
Allen Bradley PC Board, p/n 40296-024-5.
EDR81345
Allen Bradley PC Board, p/n 40295-004-51.
EDR81350
Allen Bradley AVC Board, p/n 40295-079-5.
EDR82351
Allen Bradley PC Board, p/n 31010-042-5.
EDR82532
Jensen Folder, p/n 4241002.
EDR82350
King Engineering, DF-1 board, p/n 309548.
EDR81232
Koden’s Interface board.
EDR82977
OPTO-22, p/n G4PB16T.
EDR8013
P&B, Relay Assembly for XD07, ground check monitor.
EDR81241
Remote Gas Engine starter.
EDR8045
A.J. Antunes & Co., toaster model HEMT-12, p/n 0010204R.

Back to Contents

Analog/Video Switch

D3F9D1, EDR82628
D3F9D1, EDR82628, 9VDC, 1Amp VIDEO Switch. High Frequency Analog, 0.10 Ohm SPDT Switch. Designed to switch DC-5MHz signal in nanoseconds. Utilizes only 1.4 sq. in. of PCB area and only 1.15” tall. 1A continuously or up to 3.5 A pulse in a miniature package.




For further information:

Email: info@vsholding.com

Back to Contents
Top of page
